DC Distribution systems & Fuses

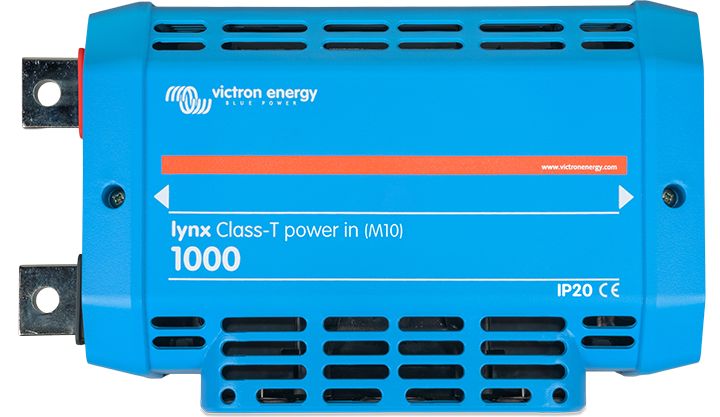

The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries. It features a positive and negative busbar, and connections for two Class-T fuses as well as a connection to ground the DC system. The Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately. For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

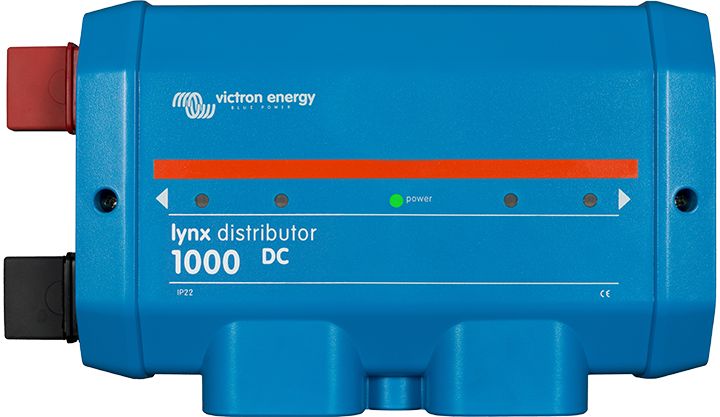

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.

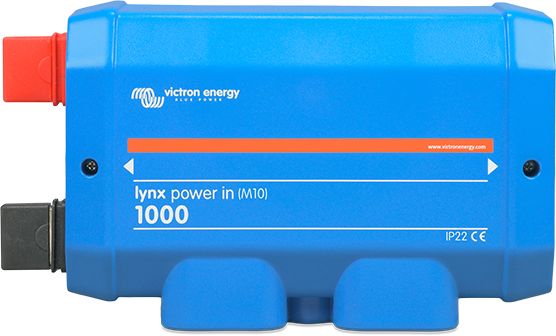

A modular DC busbar used to connect batteries to the Lynx DC distribution system, available as M8 and M10 models.

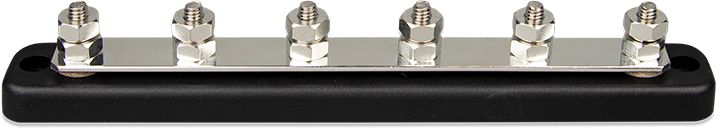

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover. Available models: 150A / 70V - 4 high current connections 150A / 70V - 6 high current connections150A / 70A - 2P with 10 screws +cover150A / 70A - 2P with 20 screws +cover250A / 70V - 4 high current connections250A / 70V - 6 high current connections250A / 70A - 2P with 6 screws +cover250A / 70A - 2P with 12 screws +cover600A / 70V - 4 high current connections and 8 low current connections 600A / 70V - 8 high current connections and 8 low current connections For more technical information and for the busbar dimensions see the datasheet.

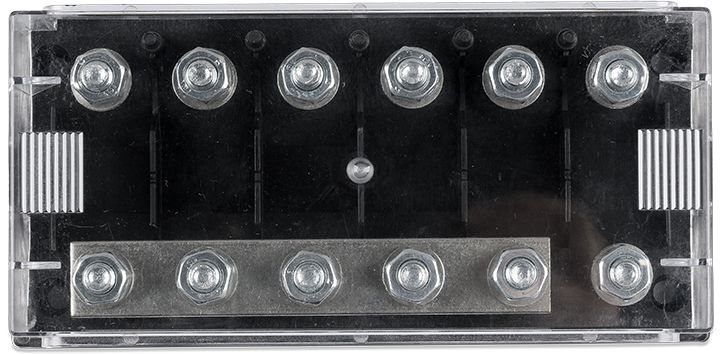

Besides an assortment of ANL, MIDI and MEGA fuses, we feature three different types of fuse holders: Simple single fuse holders for each of above fuse types. A six-way fuse holder, MEGA fuses only. Modular single fuse holders, for MEGA fuses only. With an optional busbar accessory to efficiently connect multiple fuses together. For a full list of available parts, refer to the price list. For more technical information, see the respective datasheets. Besides above fuse holders, we also have the Lynx Power In and the Lynx Distributor, part of the Lynx 1000 Amp distribution system. See the DC Distribution section on our website.
