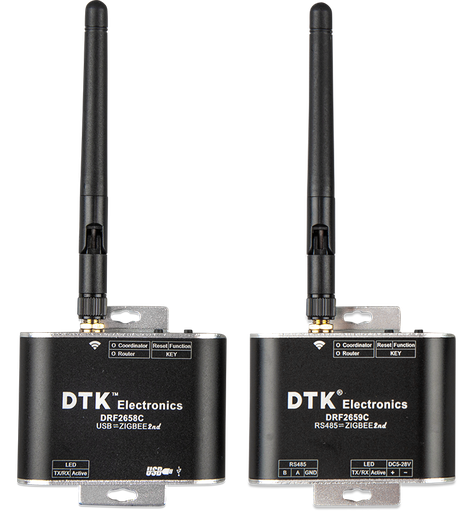

This pair of Zigbee converters is to wirelessly connect an Energy Meter to a GX Device.Zigbee to USB converter, DRF2658C, DTKZigbee to RS485 converter, DRF2659C, DTK

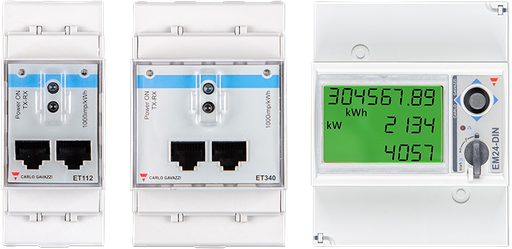

Energy Meters are typically used in an Energy Storage System, to measure the power and energy of the whole application at the distribution box. Also they can be used to measure the output of a PV Inverter, to display the data on GX device such as the Cerbo GX and the VRM Portal.There are several models available from Victron:ET112 (for single phase max. 100A)ET340 (for three phase max. 65A)EM24 Ethernet (for three-phase max. 65A)EM540 (RS485 - for three-phase max. 65A)For more information, please see the selection guide PDF below.

CANvu GX IO Extender and wiring kit.

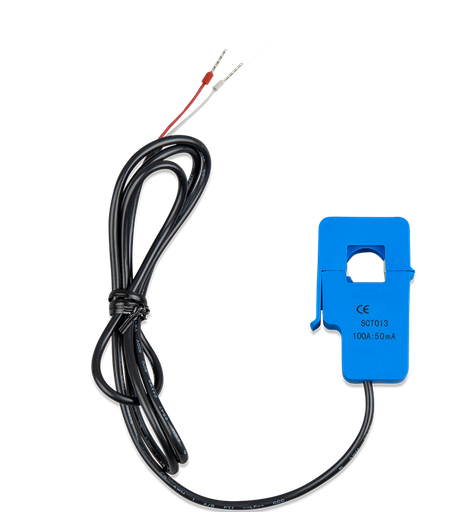

Current Transformer 100A:50mA for MultiPlus-II / MultiGrid-II to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing. See MultiPlus-II datasheet for more details.Note that there are two types:CTR11xxxx has a jack connector
CTR12xxxx has a wire end
 Both types are available with 1, 5 and 20 meter cable lengths.

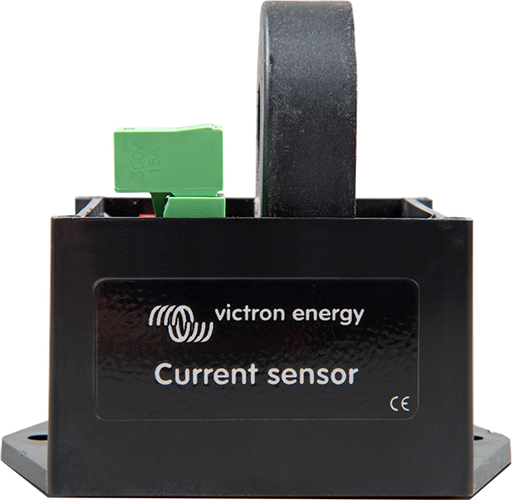

The AC Current sensor is a simple external current sensor used to measure AC Current, Power (VA) and calculate energy of a PV Inverter connected to the AC input or output of a Multi or Quattro. These values can then be displayed and sent to the VRM-website by the Color Control. The two measurement wires can be connected to the AUX and/or temperature sense input of a Multi or Quattro.

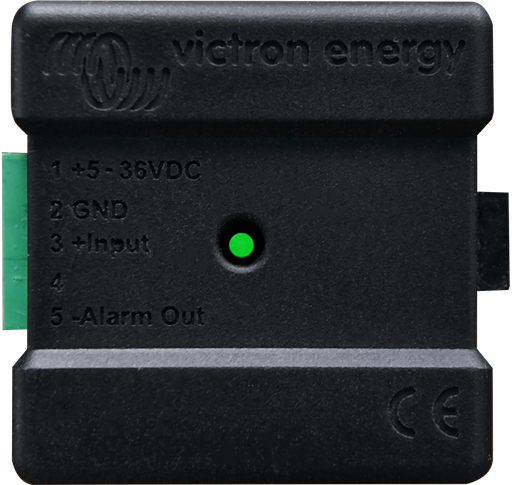

The CAN-bus Temp. Sensor is a battery temperature sensor for the Buck-Boost DC/DC converter range and is an essential accessory when the Buck-Boost DC/DC converter is connected to a LFP lithium battery.
Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.
The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.
In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a Multi or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.

The MPPT WireBox provides an extra level of safety, and is particularly useful if your MPPT Solar Charger is installed in a general access area. It covers all DC terminals, preventing accidental or inquisitive contact with terminal screws.There are various sizes available:MPPT WireBox-L MC4 150-45/60/70 & 250-60/70MPPT WireBox-L MC4 150/70 & 250/70 VE.CanMPPT WireBox-XL MC4 150-85/100 & 250-85/100MPPT WireBox-XL MC4 150-85/100 & 250-85/100 VE.Can

The MPPT WireBox provides an extra level of safety, and is
particularly useful if your MPPT Solar Charger is installed in a general
access area. It covers all DC terminals, preventing accidental or
inquisitive contact with terminal screws.There are various sizes available:MPPT WireBox-S 75-10/15MPPT WireBox-S 100-15MPPT WireBox-S 100-20MPPT Wirebox-M 100-30/50 & 150-35/45MPPT WireBox-L Tr 150-45/60/70 & 250-60/70MPPT WireBox-XL Tr 150-85/100 & 250-85/100MPPT WireBox-XL Tr 150-85/100 & 250-85/100 VE.Can

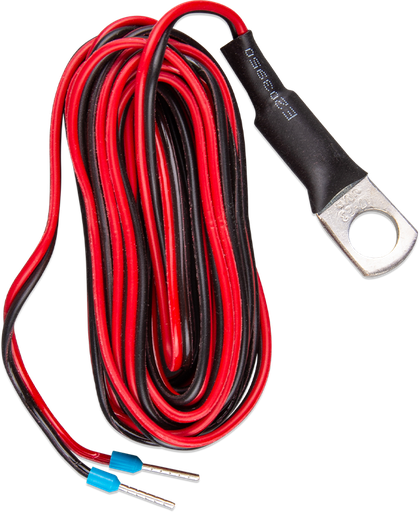

Temperature sensor for Quattro, MultiPlus and GX Device.

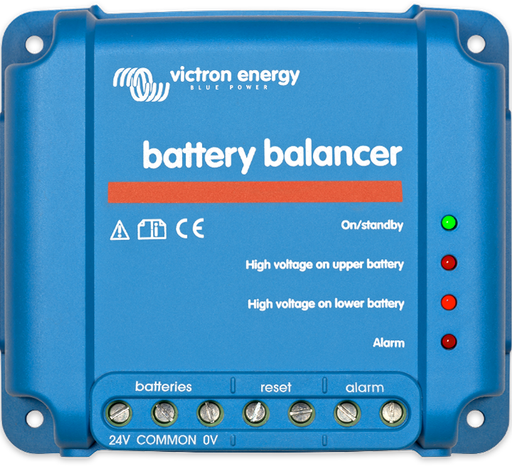

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.If needed, several balancers can be paralleled.A 48V battery bank can be balanced with three Battery Balancers.

The GX GSM is a modem & GPS accessory for our GX range of monitoring products. The GX GSM is a cellular modem; providing a mobile internet for the system and connection to the VRM Portal. It works on 2G and 3G networks.
It includes a built-in GPS receiver. When the optional GPS antenna is installed, the system can be tracked as well as Geo-fenced on the VRM Portal. Note that many telecom operators are in the process of shutting down their 3G networks. Make sure to consider the replacement product, the GX LTE 4G, as well.

The GX LTE 4G is a cellular modem for our GX range of monitoring products. It provides a mobile internet connection for the system and connection to the VRM Portal. It works on 2G, 3G and 4G networks.There are multiple models, refer to the manual to see which model best matches the available cellular network bands in your area.The GX LTE includes a built-in GPS receiver. When the optional GPS antenna is installed, the system can be tracked as well as Geo-fenced on the VRM Portal.

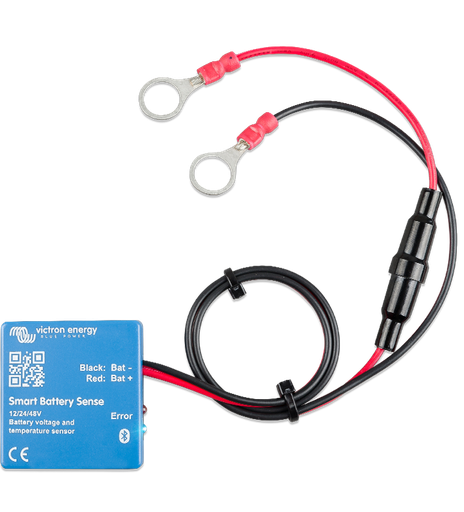

Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron MPPT Solar Chargers.With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.

This adapter is designed to easily replace the CCGX display with the newer GX Touch. Contents of the packaging are the metal bracket, the plastic bezel, and four mounting screws.

There are two methods of mounting: “Install including screen” - most secure mounting of the GX Touch display “Install excluding screen” – GX Touch display is easier to remove, and the adapter can be mounted before completing the wiring Refer to the Quick Installation Guide for details.

DIN-Rail adapter to easily mount a device on a DIN-Rail. Suitable for the Cerbo GX.

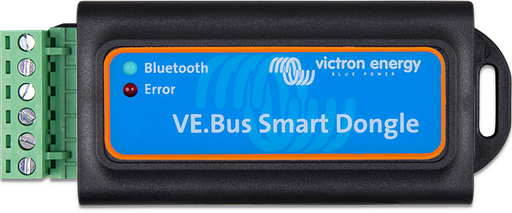

The VE.Bus Smart dongle is two products in one:First of all it is the Bluetooth accessory for our range of inverter/chargers: Multis, MultiPlusses, MultiPlus-II, MultiGrid, MultiGrid-II, Quattros, and our series of Phoenix Inverters with a VE.Bus port. When installed, use the VictronConnect App to monitor operation and also operate the system: change the input current limit as well as switch between Off, On and Charger-only modes.Secondly it can work as a Voltage- and Temperature-sense device for the inverter/charger. This works with all models.For monitoring, the device is a great alternative in caravans, smaller yachts and motor homes for which the Color Control GX or Venus GX are a step too far.

The SolidSwitch 104 will switch DC loads of up to 70V/4A and can be controlled by a low power digital signal. The DC load can be resistive, capacitive or inductive (such as the coil of a high-power
contactor).The SolidSwitch is not reverse polarity protected and not short circuit proof.
